Product Scanner App + Website

In One Sentence

Product Scanner replaces manual label typing with a phone camera — scan a mechanical product label, on-device OCR reads Chinese text, AI extracts structured fields, and a web dashboard lets the team search, edit, export, and monitor inventory in real time.

The Problem

Warehouse teams manually copied label text into spreadsheets — slow, error-prone, especially with Chinese characters and OCR-confusable material numbers (TRIO vs TR1O). Managers had no live view of what was scanned on the floor. Quality checks were forgotten because nothing flagged overdue items.

---

Seven Core Capabilities

1. Mobile Capture — Camera to Cloud in Seconds

Pain point: Typing eight fields from a small label takes minutes and introduces transcription errors.

What Product Scanner does:

• Real-time camera preview (rear camera, high resolution) or gallery pick as alternative.
• On-device OCR via Google ML Kit Text Recognition with Chinese script — reads mixed Chinese/Latin mechanical labels without sending images to a cloud OCR service.
• Raw OCR text displayed on screen before save — worker sees exactly what was read.
• Review form pre-filled with AI-extracted fields; worker edits any value before submit; product name required.
• Production date picker with locale-aware formatting.
• Auto-computed on save: storage_date (receipt datetime) and ISO week number (YYYY-WW, Monday-based) — drives all dashboard grouping and reporting.
• Save to shared MongoDB via POST /api/products; success confirmation and form reset.

2. AI Field Extraction — Manufacturing-Tuned Prompt

Pain point: Generic LLM extraction misreads domain-specific label formats — wrong material numbers, merged fields, decimal quantities.

What Product Scanner does:

• Raw OCR text sent to POST /api/ai/analyze (JWT-protected).
• Doubao / Volcengine Ark (doubao-1-5-lite-32k-250115, temperature 0.3) with a dedicated ai_prompt.json tuned for mechanical manufacturing labels:

Field	Extraction rules
product_name	Full description; typo correction; exclude QC slogans (PASS/OK/合格)
material_number	Must be TRIO or CMDY + digits; auto-fix OCR confusions (0/O, 1/I)
purchase_order	Exactly 10 digits
quantity	Integer only — strip .00 decimals
supplier_code	8 or 10 pure digits
drawing_number / version	Split on / when combined on label
production_date	Normalise DD.MM.YYYY → YYYY-MM-DD

• Returns structured JSON; markdown code fences stripped before parse; missing fields default to empty string.
• Human review step catches any remaining AI errors before data enters the database.

3. Edit Mode — Full Data Stewardship Dashboard

Pain point: Scanned data needs correction, quality marking, and batch management — a read-only list is not enough.

What Product Scanner does:

• Ant Design table with 12 columns: product name, material number, purchase order, quantity, supplier code, drawing number, version, production date, quality check, storage date, week number, comment.
• Inline editing — click any cell; text, date picker, datetime, or quality-check dropdown (pass / fail / blank).
• Edited cells highlighted blue; unsaved changes banner with count.
• Multiple save triggers:
  • Blur or Enter on text cells
  • 5-second debounced auto-save after last edit
  • Ctrl/Cmd+S manual save
  • Ctrl+Z / Ctrl+Y undo/redo within a cell
• Batch save via PUT /api/products/batch.
• Week filter — dropdown of ISO week numbers; auto-selects most recent week on load; 100 items/page in week view vs 40 in "All".
• Search by product name or material number (500ms debounce); date range filter on storage date.
• Bulk delete with confirmation modal.
• Per-row comment modal — free-text notes stored in DB, displayed as blue tag in table.

4. Live Mode — Real-Time Floor Monitor

Pain point: Office managers want to see scans as they happen without refreshing or accidentally editing data.

What Product Scanner does:

• View-only monitor at /live — all editing, delete, comment, and filter controls disabled.
• Fetches all weeks; sorted by lastActivityAt descending — newest creates/updates float to top.
• Auto-refresh every 10 seconds (silent, no loading spinner).
• Info banner: "数据每10秒自动刷新，已关闭所有编辑、删除、评论功能".
• Failure handling: after 5 consecutive refresh failures, auto-pauses with warning banner and "继续 Live" resume button.
• Header toggle switches between Edit and Live modes without re-login — one app, two personas (data steward vs floor monitor).

5. Quality Check Alerts — 48-Hour Escalation

Pain point: Quality inspection is a separate step that gets forgotten; overdue items blend into the table.

What Product Scanner does:

• quality_check field: pass, fail, or blank (not yet inspected).
• quality_check_update_date set on create and refreshed whenever quality_check changes.
• Alert rule: if quality_check is empty AND quality_check_update_date is 48+ hours old (or never set):
  • Red row background across entire row including fixed columns
  • Red quality_check cell text
• Items with pass or fail are never flagged regardless of age.
• Auto-sort: overdue items pinned to top of current page in both Edit and Live modes.
• Makes invisible backlog visible without a separate QC workflow tool.

6. Week-Based Organisation & CSV Export

Pain point: Inventory reporting is done weekly; exports must work in Excel with Chinese characters.

What Product Scanner does:

• Every product tagged with ISO week number derived from storage date — enables week-based filtering and reporting.
• Changing storage_date in edit mode recalculates weekNumber.
• CSV export modal — filter by week number and/or storage date range (search keyword does not affect export scope).
• Pre-checks record count; warns if zero results.
• UTF-8 with BOM + CRLF line endings — Excel-safe for Chinese column headers.
• Exported columns: 产品名称, 物料号, 采购订单, 产品数量, 供应商代码, 图号, 版本, 生产日期, 质量检查, 收货日期.
• Filename pattern: 产品数据_周数{week}_{start}_{end}_{export-date}.csv.

7. Shared Team Database & Authentication

Pain point: Floor workers and office managers need the same data without separate silos.

What Product Scanner does:

• Single MongoDB database shared across all authenticated users — any logged-in user sees all products (team inventory, not per-user isolation).
• JWT authentication (7-day expiry) shared between Flutter app and React dashboard.

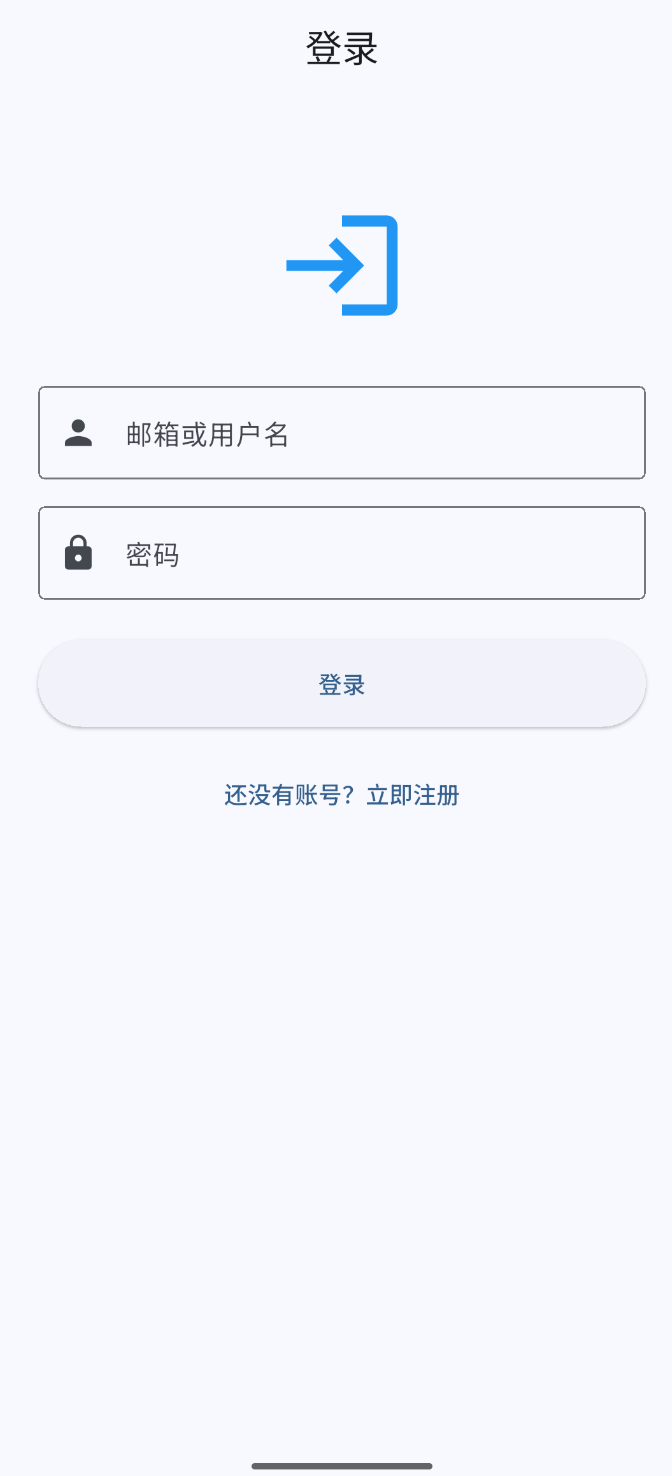

• Register: email + username + password (min 8 chars, bcrypt); login by email or username.
• 401 handling: both clients clear token and redirect to login on expiry.
• Rate limiting: 10 auth attempts / 15 min; 100 general requests / 15 min per IP.
• Docker Compose local dev stack (MongoDB + backend); APK/AAB build for Android deployment.

---

Real-World Impact

In production at a UK mechanical manufacturing company (same client as Project Dashboard). Significantly reduced manual data entry time and improved inventory traceability by ISO week. Live mode used as a floor-to-office monitoring display.

Skills Demonstrated

Area	What this project shows
Mobile	Flutter, camera, Google ML Kit Chinese OCR, go_router, Dio
AI/OCR pipeline	On-device OCR → domain-tuned Doubao extraction → human review
Full-stack	Shared Node.js/MongoDB API for mobile + web
Enterprise UX	Edit vs Live dual mode, inline auto-save, quality escalation
Production delivery	Real factory floor deployment with CSV reporting

How It Works (Plain English)

1. Worker scans label on phone → ML Kit OCR reads text → AI extracts 8 fields → worker reviews → saves to cloud with auto week tag.
2. Manager opens web dashboard in Edit mode → searches, inline-edits, marks quality, adds comments.
3. Live mode on office screen auto-refreshes every 10s — newest scans appear at top.
4. Red rows flag items overdue for quality check (48h+).
5. Export CSV by week or date range for weekly reporting.

Architecture

┌─────────────────────┐         ┌─────────────────────────┐
│  Mobile App         │         │  Web Dashboard           │
│  (Flutter)          │         │  (React + Ant Design)    │
│  Camera→ML Kit OCR  │         │  /edit · /live modes     │
│  → AI → review      │         │  inline edit · CSV       │
└──────────┬──────────┘         └────────────┬────────────┘
           │         HTTPS + JWT             │
           └──────────────┬──────────────────┘
                          ▼
               ┌─────────────────────┐
               │  Shared API Server   │
               │  Node.js + MongoDB   │
               │  + Doubao AI analyze │
               └─────────────────────┘

Tech Stack

• Mobile: Flutter 3.3+, Provider, go_router, Dio, Camera, Google ML Kit OCR, SharedPreferences
• Web: React 18, TypeScript, Vite, Ant Design 5, Zustand, Axios, dayjs
• Backend: Node.js 18+, Express, MongoDB/Mongoose, JWT, bcrypt, json2csv
• AI: Doubao / Volcengine Ark chat completions with ai_prompt.json
• Deploy: Docker Compose; Android APK/AAB builds

---

Scan once, data everywhere — no more retyping labels by hand.
